NSN 1670-01-062-6301

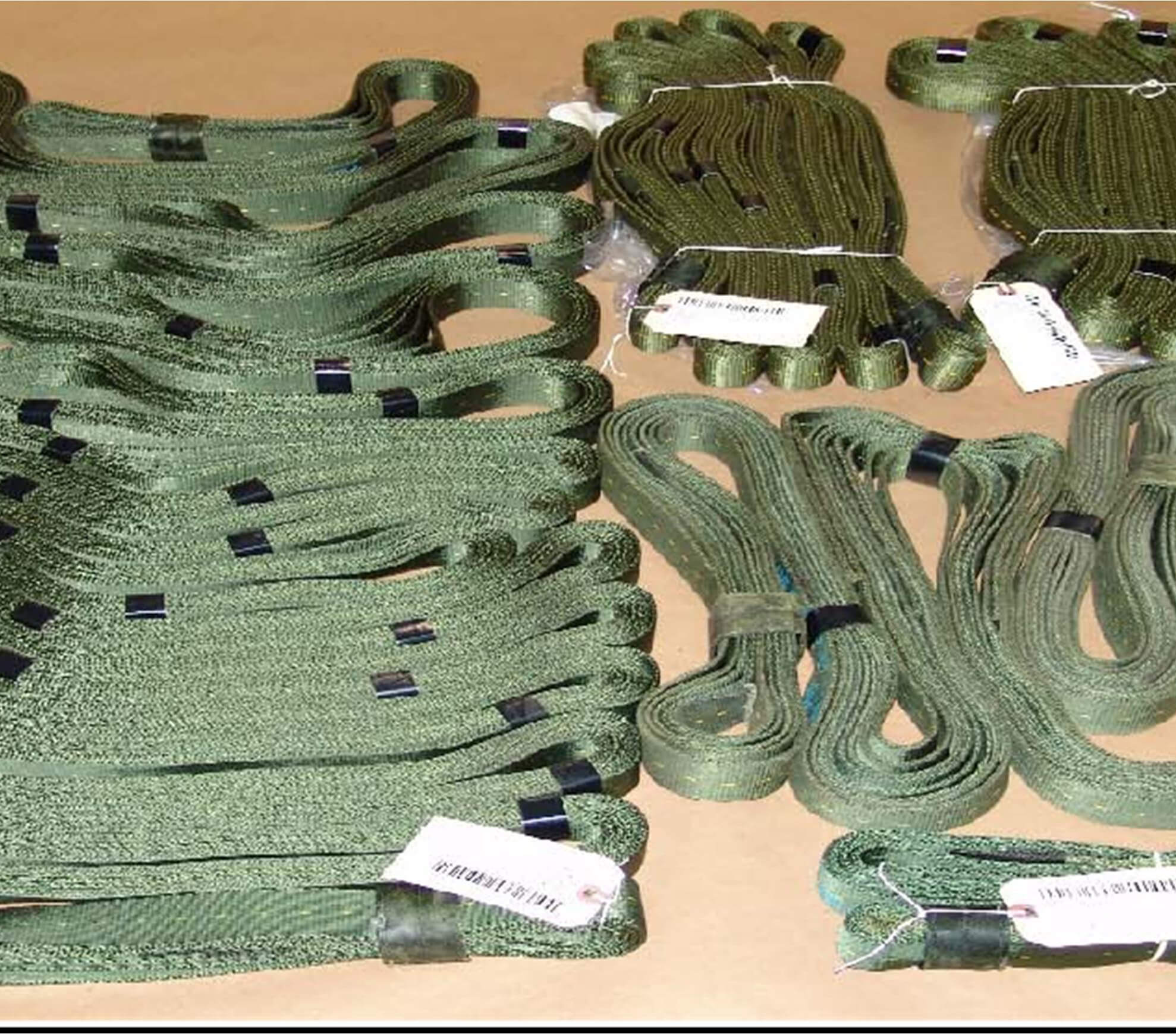

Multiloop Line

Nylon webbing, 1-3/4-inch wide. Secondly, a universal panel that stows extraction lines and suspension slings for deployment. Portable, used with all approved extraction line for C-130 and C-17 aircraft.

Nomenclature: LINE, MULTI-LOOP, CONCENTRIC TYPE

Nylon webbing, Type XXVI, 1-3/4-inch wide

NSN: SEE CHART BELOW FOR DETAILS
Applicable Military Specification/Standard PIA-W-4088
Applicable Military Reference: TM 10-1670-296-20&P / TO 13C7-49-2 / FM 4-20.102 / TO 13C7-1-5



PART NO. NSN LENGTH LOOP TEST LOAD
68F217-48 1670-01-062-6301 3 FT. 2 44,500
68F217-49 1670-01-062-6304 9 FT. 2 44,500
68F217-58 1670-01-063-7760 11 FT. 2 44,500
68F217-50 1670-01-062-6303 12 FT. 2 44,500
68F217-22 1670-01-063-7761 16 FT. 2 44,500
68F217-51 1670-01-062-6302 20 FT. 2 44,500
68F217-52 1670-01-062-6306 3 FT. 4 89,000
68F217-53 1670-01-062-6305 9 FT. 4 89,000
68F217-59 1670-01-062-6310 11 FT. 4 89,000
68F217-54 1670-01-062-6307 12 FT. 4 89,000
68F217-55 1670-01-062-6308 16 FT. 4 89,000
68F217-56 >1670-01-064-4453 20 FT. 4 89,000
68F217-57 1670-01-062-6309 28 FT. 4 89,000
68F217-47 1670-01-064-4451 36 FT. 1 22,500
68F217-45 1670-01-064-4452 60 FT. 1 22,500
68F217-30 1670-01-062-6313 60 FT. 3 67,500
68F217-32 1670-01-064-4454 60 FT. 6 135,00
68F217-41 1670-01-062-6311 120 FT. 2 44,500
68F217-33 1670-01-062-6312 120 FT. 6 135,000
68F217-60 1670-01-107-7651 140 FT. 3 67,500
68F217-61 1670-01-107-7652 160 FT. 1 22,500
68F217-38 1670-00-040-8187 215 FT. 1 22,250
68F217-37 1670-00-040-8185 215 FT. 2 44,500
68F217-39 1670-00-040-8194 215 FT. 3 67,500
68F217-35 1670-00-040-8184 215 FT. 6 135,000

Download official product description

Download PRODUCT DESCRIPTION
